Laundry transport
Configurate your cart
Laundry collectors
with or without integrated push handle
For the collection of dirty laundry: mobile collectors in different sizes and designs to meet every requirement. Standard on all models:
- stainless steel construction, 22 mm tube (304)
- all joints welded around for stability and optimum hygiene
- laundry bag collectors with Care clamping ring for bags of size approx. 600 x 1000 mm measured flat
- 3-tube reinforcement of lower frame
- mounted on four 75-mm swivel casters with grey rubber tyres
On certain models:

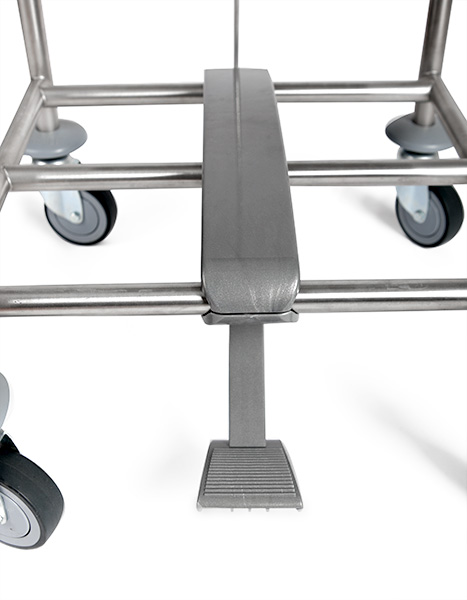

- hinged lid(s) with damping and foot control (foot control inhibits the collector from sliding)
- includes stainless steel hook(s)
- choice of lid colours
- donut bumpers available on request.
Options:
- 4 standard casters, 2 with brakes
- 4 stainless steel casters
- 4 stainless steel casters, 2 with brakes
- antistatic casters
- stainless steel bottom platform
- stainless steel hook
Laundry combination cart
with ‘droppy’
For the collection of dirty laundry combinated with a ‘droppy’ waste collector. Standard on all models:
- stainless steel construction, 22 mm tube (304)
- all joints are welded around for stability and optimum hygiene

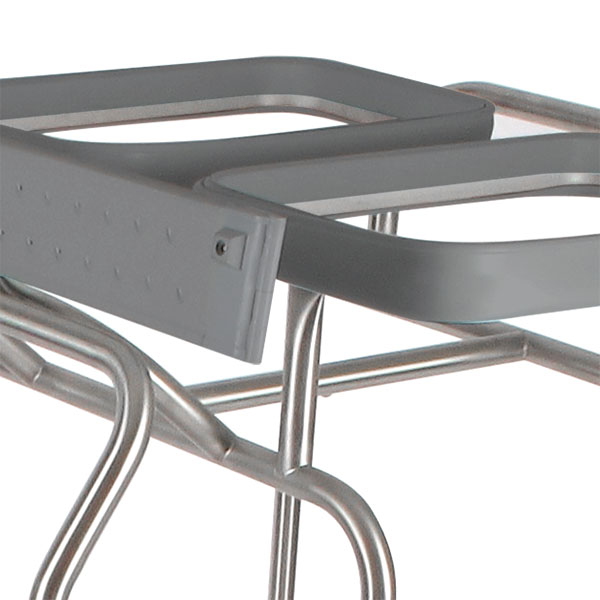

- rectangular laundry bag collectors with grey rubber clamping rings for bags of size approx. 600 x 1000 mm measured flat
- 3-tube reinforcement of lower frame
On certain models:
- hinged lids with damping and foot control
- choice of lid colour
Droppy:

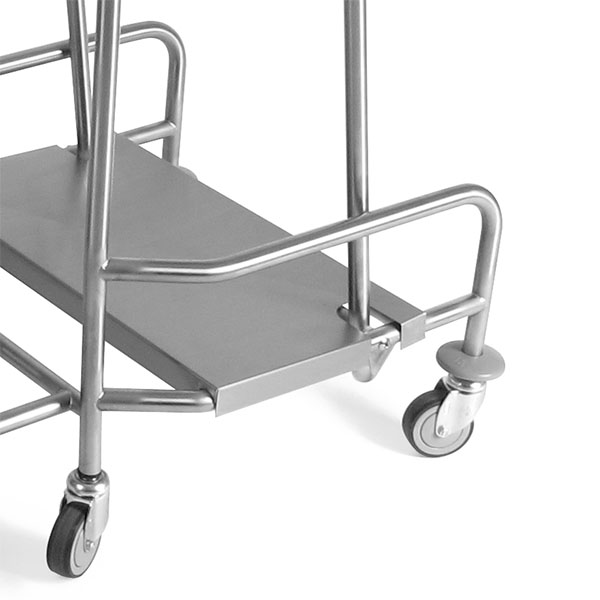

- Droppy for waste bags of size 575 x 1000 mm measured flat, supported by a stainless steel platform on the lower frame
- opening the Droppy immediately inhibits movement of the cart
- mounted on 75-mm swivel casters with grey rubber tyres
- donut bumpers at the corners.
Available on request:
- an extra stainless steel platform on the lower frame of the laundry collector(s).

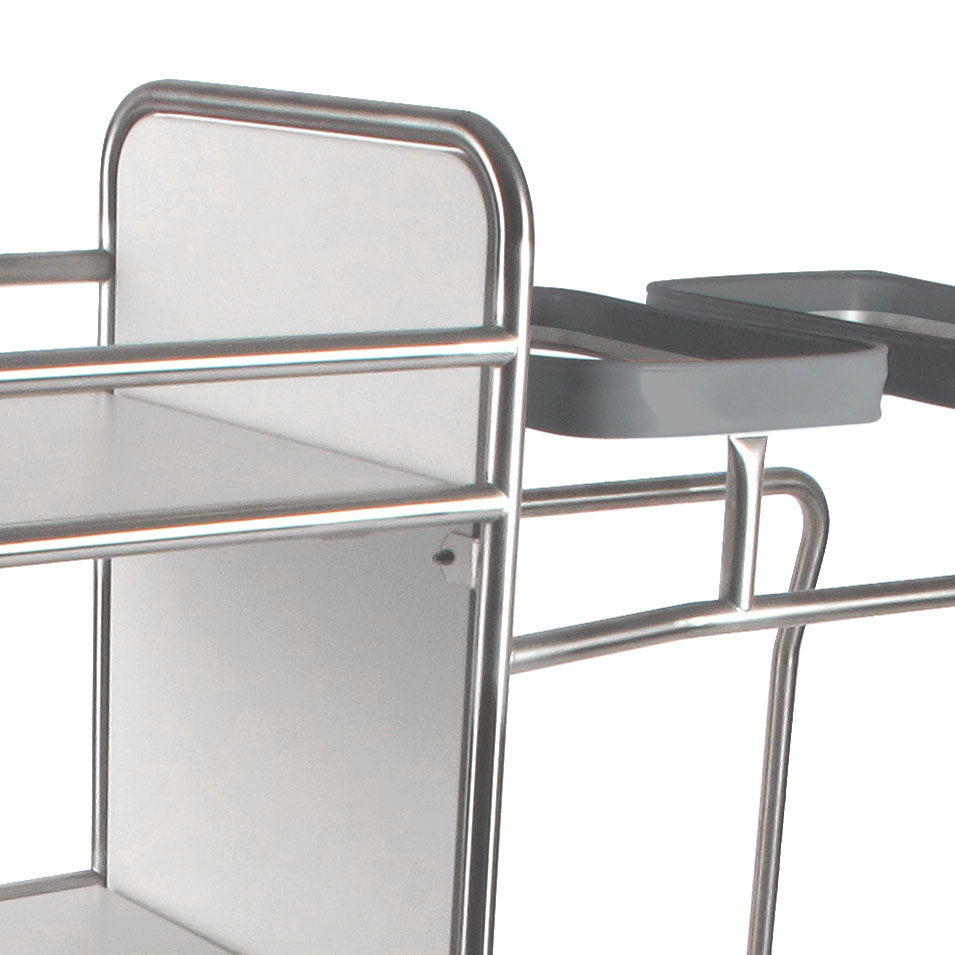

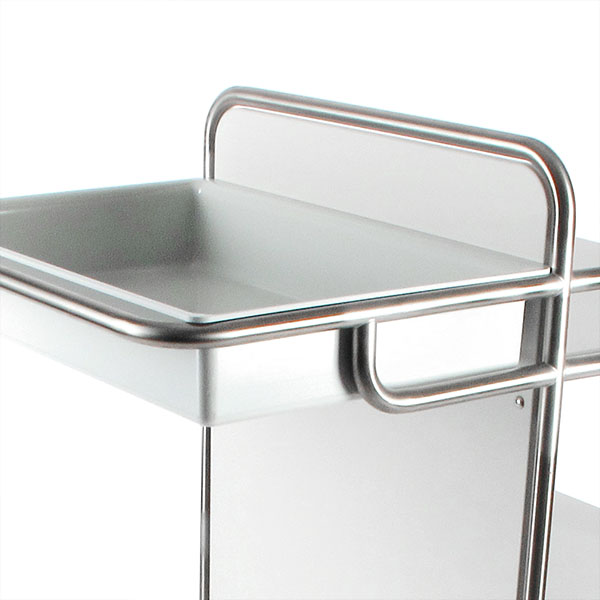

Open linen ward carts
with or without dirty laundry collectors
The open ward carts have a clean linen area and collector(s) for dirty laundry. The platforms can be accessed from three sides and are easy to clean. All joints are welded around for stability and optimum hygiene.
Standard on all models:
- stainless steel construction, 22 mm tube (304)
- rectangular laundry bag collectors with Care clamping ring for bags of size approx. 600 x 1000 mm measured flat
- three light grey platforms for the clean linen, each of size 600 x 400 mm
- height between platforms: 320 mm
- a vertical separation wall between dirty and clean laundry

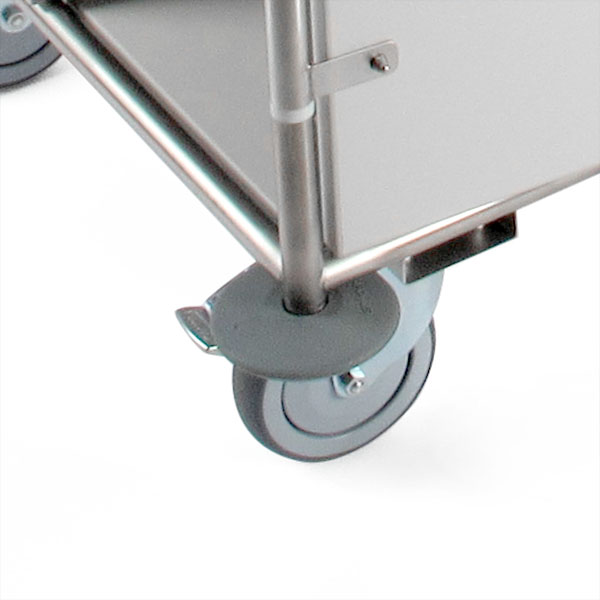

- mounted on four 125-mm swivel castors with grey rubber tyres, two with brakes
- rubber donut bumpers at the corners
On certain models:
- hinged lid(s) with damping and foot control (foot control inhibits the collector from sliding)
- choice of lid colours
- donut bumpers available on request
Options:
- Hygienic dispensers for disinfectants, liquid soaps and lotions
- Optional drip tray under dispenser.

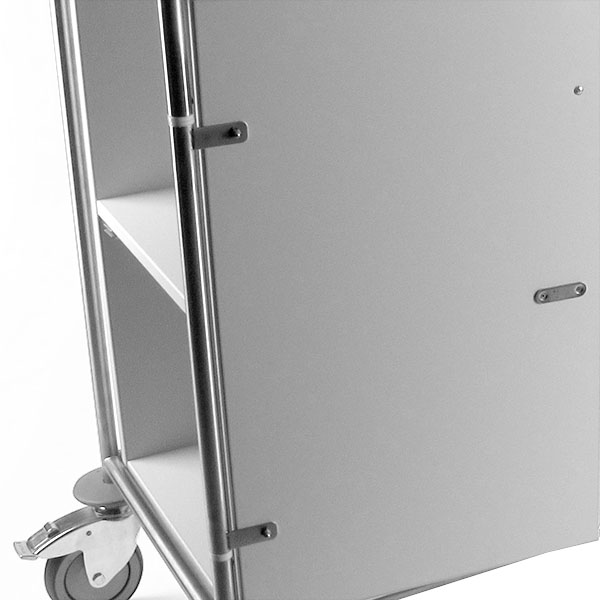

Linen ward carts
with cabinet
These ward carts have a closed area for clean linen and collectors for dirty laundry.
Standard on all models:
- stainless steel frame of 22 mm tube (304), welded around for stability and optimum hygiene
- the rectangular laundry bag collectors have Care clamping rings for bags of size approx. 600 x 1000 measured flat

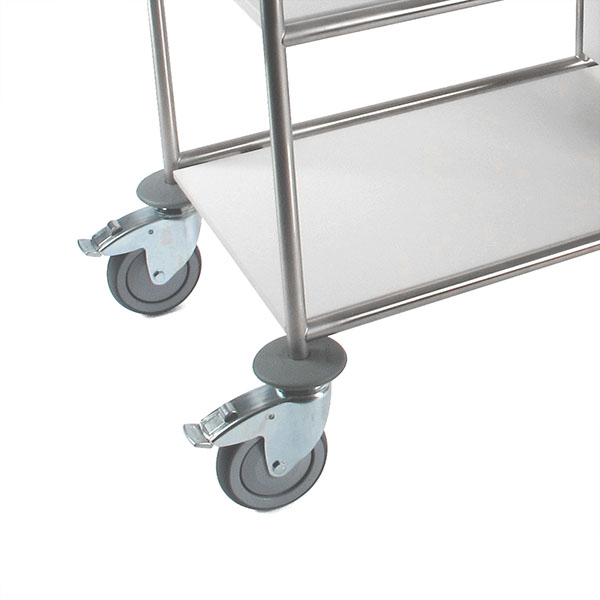

- mounted on four 125-mm swivel casters with grey rubber tyres, 2 with brake
- rubber donut bumpers on the corners
On certain models:
- donut bumpers at the cornersLinen ward carts with cabinet are also available with hinged and damped lids
- The cabinets are also available with adjustable shelves and in various colours

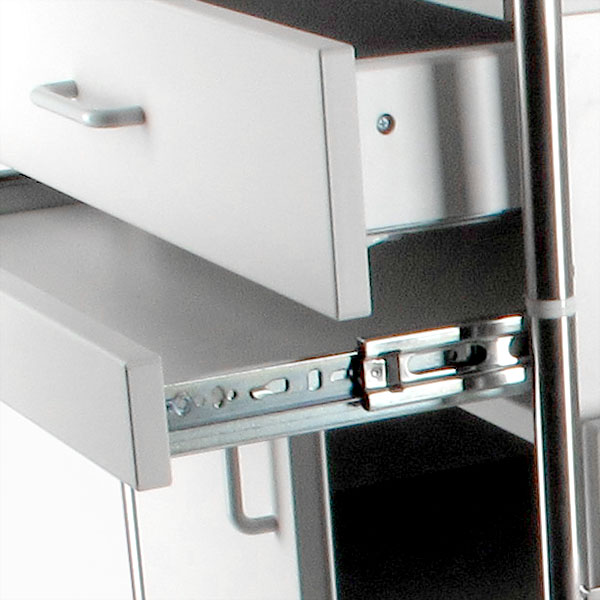

- In stead of the drawer/writing shelf, two drawers may be requested (page 42 & 43)
- On request lockable by means of a lock
Options:
- Hygienic dispensers for disinfectants, liquid soaps and lotions
- Optional drip tray under dispenser
Linkable ward carts
with laundry collectors

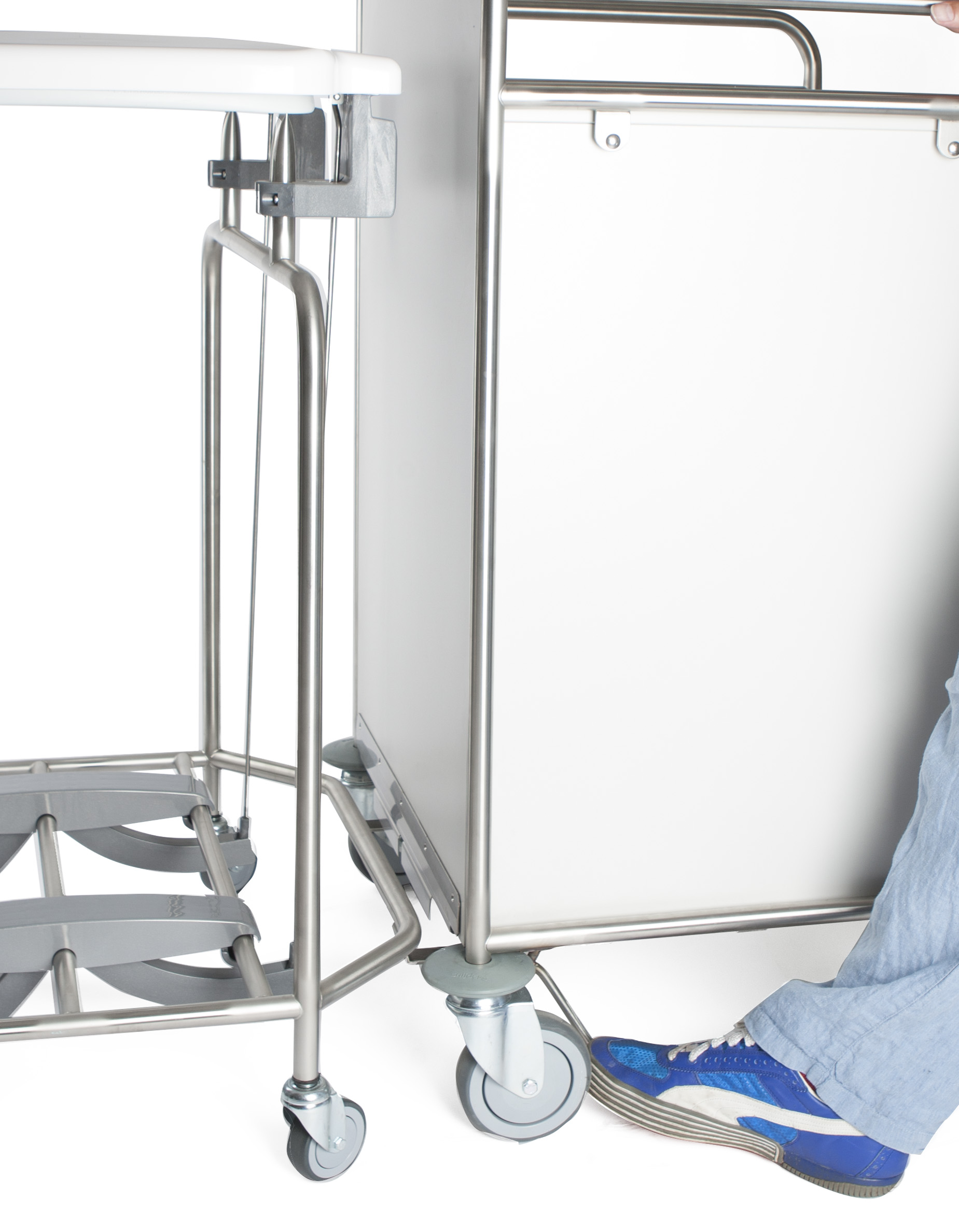

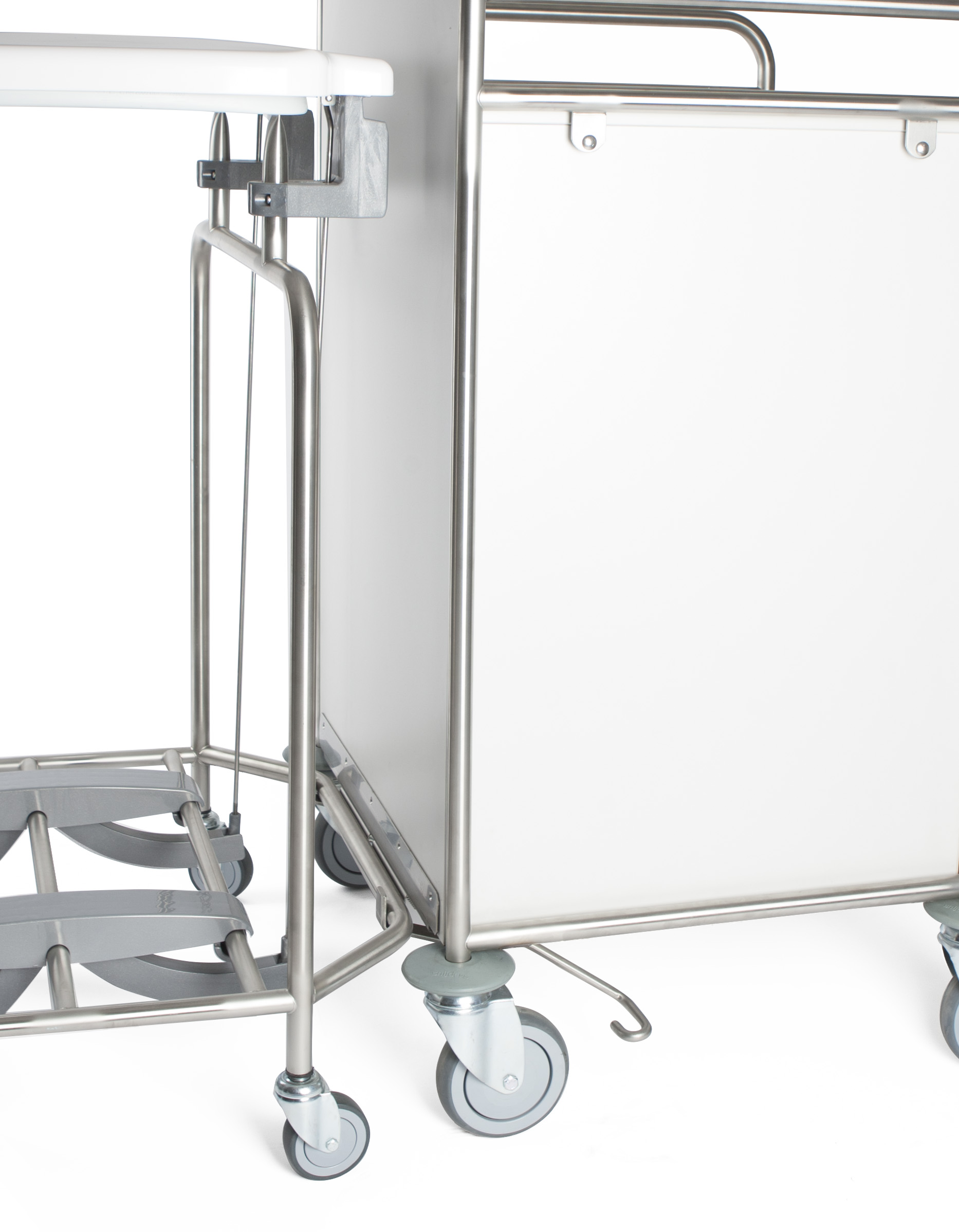

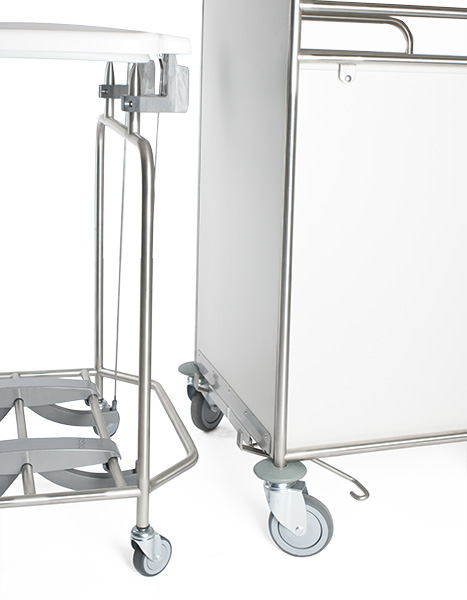

These linkable ward carts can be attached to an open or closed ward cart without rings using
the pedal & hook coupling mechanism LM1. Any linkable collector can be linked to these
ward carts.
This has great advantages for infection prevention: both parts can easily be used separately
from each other, allowing the segregated storage of clean and dirty laundry (see page 50).
The LM1 pedal and hook mechanism is mounted at the back under the cart floor.
The ward carts are mounted on four 125-mm swivel castors, with grey rubber tyres, 2 with
brakes, and have rubber donut bumpers at the corners.
On certain models:
- hinged lid(s) with damping and foot control (foot control inhibits the collector from sliding)
- choice of lid colours
- donut bumpers available on request
Options:
- Hygienic dispensers for disinfectants, liquid soaps and lotions
- Optional drip tray under dispenser.
